50mm Pan Tilt AHD 60m 360 degree view Drain Pipe Inspection Camera

The 50mm Pan Tilt AHD 60m 360 degree view Drain Pipe Inspection Camera is a high-quality camera designed for inspecting drain pipes with a 60m range and a 360-degree view. It features pan and tilt capabilities, allowing for versatile and thorough examination of pipe interiors.

Screen Size: 13 inch HD IPS LCD Screen

Camera Size: Ø50mm x 145mm

Cable Reel: 60m 7mm middle size cable reel

Power Supply: 8800mA Li-ion rechargeable battery

Applications: Sewer Pipe, Drain Pipe, Water Pipe, Underground pipe

Production Time: 5 days for a sample. Less 10pcs, 7 days

The 50mm Pan Tilt AHD 60m 360 degree view Drain Pipe Inspection Camera is a high-quality and versatile tool for inspecting drains and pipes. Its ability to pan and tilt allows for a complete 360 degree view, while the AHD technology ensures clear and sharp footage. With a 60m cable, it offers great flexibility for use in various situations, making it an ideal choice for professionals in plumbing and inspection services.

Selling points:

1. 360 degree view: Offers a comprehensive view of the pipe or drain being inspected, ensuring thorough assessment.

2. AHD technology: Provides high-definition and clear footage for accurate analysis and identification of issues.

3. 60m cable: Offers versatility and flexibility for use in various settings, allowing for extensive reach during inspections.

360° rotation AHD Camera Head, Pan 360° Tilt 180°

1/3 CMOS,2.0MP pixel FHD , waterproof IP68

Adjustable focus function

13 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 8800mA li-ion battery inside

Digital meter counter function, error is less than 1%

,

Product Description

1. Dia.50mm Pan Tilt  rotation camera head

2. Pan 360° rotation, Tilt 180 degree rotation ,Waterproof 10bars

3. 1/3 CMOS,1.3MP pixel HD camera sensor

4. 13" HD screen with big sunshade

5. DVR control box with audio, video recording and photography function

6. 100m to 200m Dia.8mm flexible cable with electric winch

7. USB wireless keyboard to typewrite the words

8. Camera video resolution is 720P

9. Built in 8800mA li-ion battery, support control box working

10. AC110V to 230V or DC24 for electric winch working

11. Digital meter counter function, error is less than 1%

11. Manual Focus for side camera.

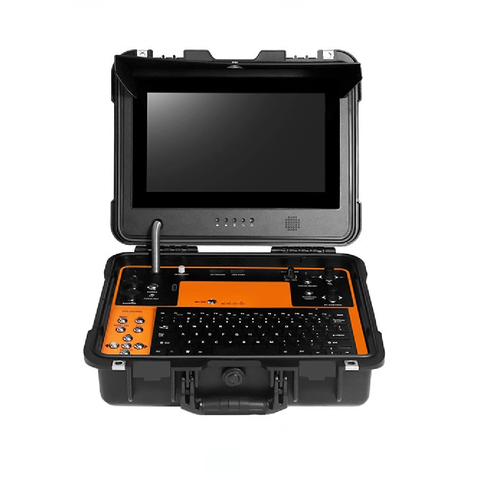

DVR control unit

Screen Size:  13"HD IPS LCD Screen, 1280X720 resolution

Waterproof level:  Waterproof keys & waterproof panel

Function:  Video, audio and photography function DVR

Keyboard:  USB wireless Keyboard real time typewriting

Meter counter:  Digital meter counter function, display on the screen

Battery:  8800mA rechargeable Li-ion Battery Pack

Battery:  level indicator

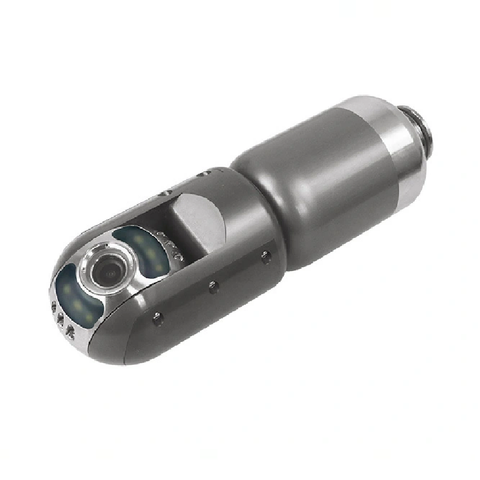

50mm Pan Tilt rotation camera head

Camera size:  50mm x 154mm

Camera pixel:  Sensor 1/3" CMOS, 1.3MP pixel

Waterproof level:  Waterproof IP68

Camera range:  View range 120°

Focusing:  Manual focus manually

Rotation range:  Rotation: Pan 360°， Tilt 180°

Light :  6pcs high light LED lighting adjustable

Connector:  Detachable with aviation plug type connection to Cable Reel

Material:  Lens window sapphire glass & stainless steel

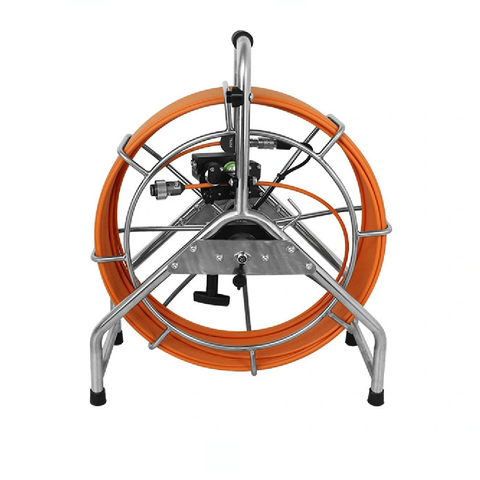

Cable Reel

Meter counter:  Digital meter counter

Material:  Fiberglass push rod cable

Cable diameter:  7mm

Cable length:  60m

Reel size:  51 x 25 x 64cm

Applications

Detect and identify pipe damage:

  Detects leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
