500 ft Self-levelling AHD 60m-150m Pipe Inspection Camera

The 40mm Self-levelling AHD 60m-150m Pipe Inspection Camera is a versatile tool for inspecting pipes of varying lengths. With its self-levelling feature and high-definition camera, it provides clear and accurate visuals for identifying any issues within the pipes.

Screen Size: 8 inch HD LCD Screen

Camera Size: Φ40 x60mm

Cable Reel: Φ9mm x 60m Fibreglass rod push cable & reel

Power Supply: 12V 7000mA Rechargeable li-ion Battery Pack

The 40mm Self-levelling AHD 60m-150m Pipe Inspection Camera is a high-quality and durable tool for inspecting pipes from 60m to 150m in length. It features a self-levelling function for easy maneuverability and a crisp AHD camera for clear visuals. Users can use this camera for inspecting drain pipes, sewer lines, and industrial pipelines with precision and ease

Self-leveling image  no matter what angle the camera is at, the image is always upwards.

1/3 CMOS, 1.3MP pixel FHD , waterproof IP68

Waterproof IP68

8 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 7000mA li-ion battery inside

Digital meter counter function, error is less than 1%

Waterproof DVR Control Unit

Screen Size:  8"HD IPS LCD Screen, 1280X720 resolution

Waterproof level:  Waterproof keys & waterproof panel

Function:  Video, audio and photography function DVR

Keyboard:  USB wireless Keyboard real time typewriting

Meter counter:  Digital meter counter function, display on the screen

Battery:  7000mA rechargeable Li-ion Battery Pack

Battery level indicator

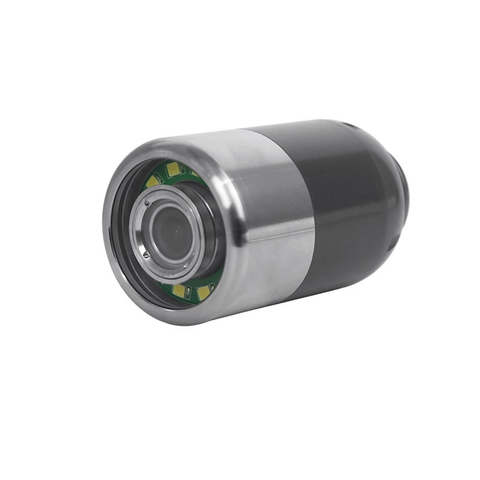

Camera Head

Camera size:  40mm x 77mm

Camera pixel:  Sensor 1/3" CMOS, 1.3MP pixel

Waterproof level:  Waterproof IP68

Camera range:  View range 120°

Light:  12pcs high light LED lighting adjustable

Connector:  Detachable with aviation plug type connection to Cable Reel

Material:  Lens window sapphire glass & stainless steel

Cable Reel

Meter counter:  Digital meter counter

Material:  Fiberglass push rod cable

Cable diameter:  9mm or 11mm

Cable length:  60m-150m

Reel size:  70 x 28 x 84cm

Tool Bag

With all parts and accessories inside

  Detects leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
