OTHER SIZES AVAILABLE

2MRCPT-1060-394

393.70ft/ 120m manual reel

2MRCPT-1060-1492

492.13ft/150m manual reel

2MRCPT-1060-656

656.17ft/ 200m manual reel

OPTIONAL

Motorized reel

Extra manual elevator

Specifications

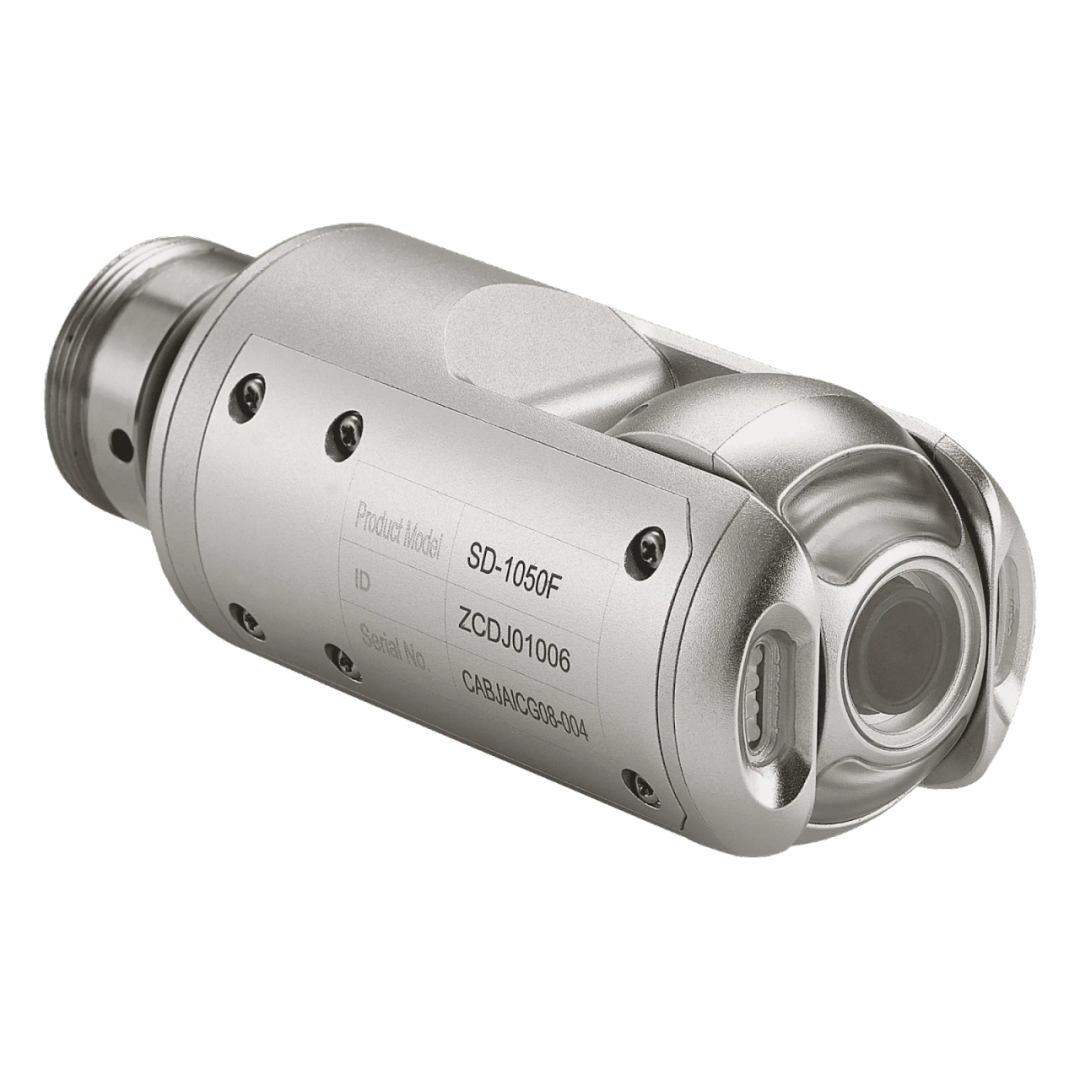

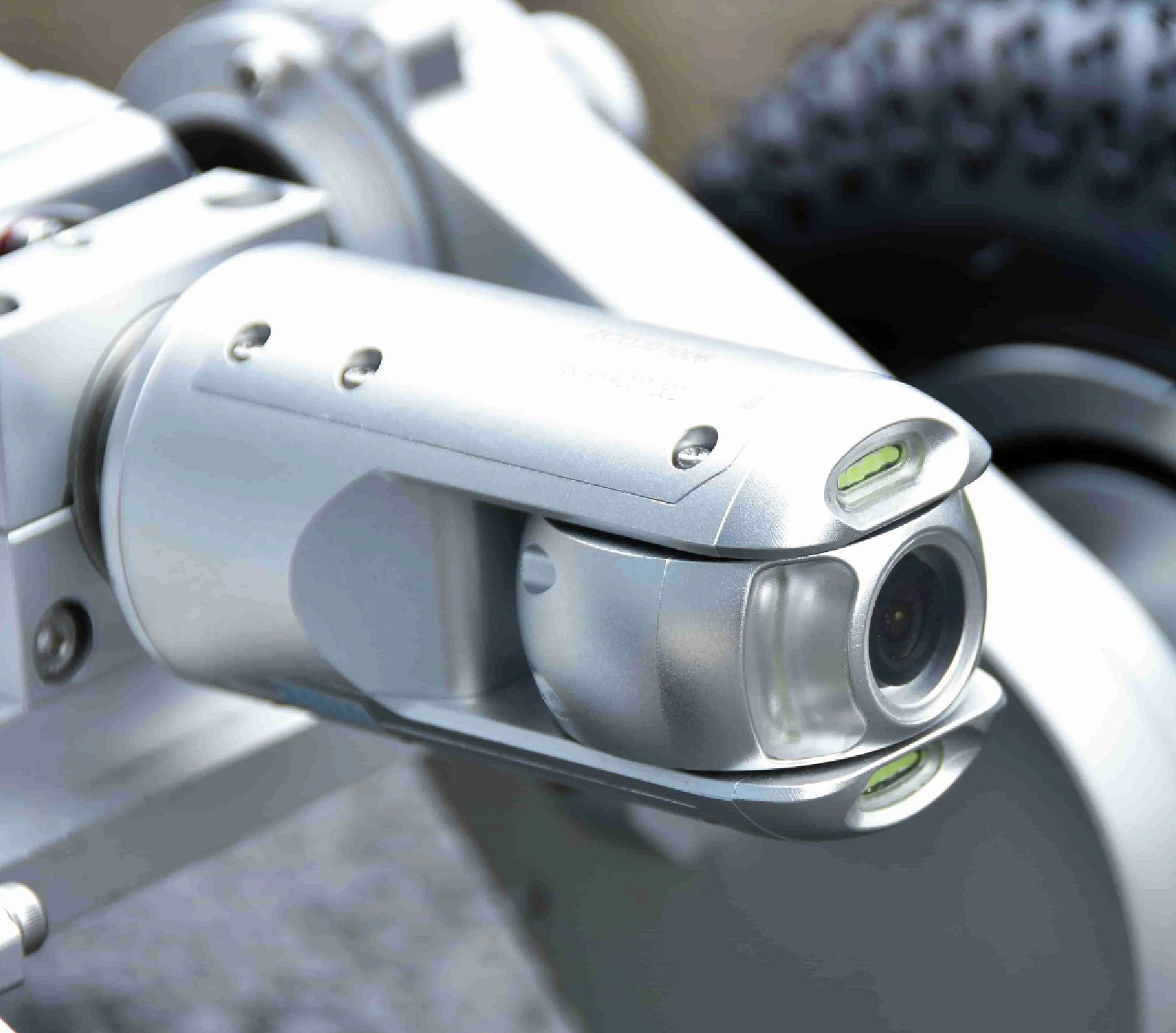

CAMERA

Image Sensor

1/3" Pixel CMOS

Illumination

0.01 LUX

Resolution

700TVL (PAL: 976 x 592; NTSC: 960 x 592)

Focus

Motorized

Light Source

20x LED Lights

Axial Rotation Pan:

360°; Tilt: 180°

Material

Aluminum

Working Temperature

-20°C to 55°C

Diameter

50mm

Weight

1.21kg

Ingress Protection

IP68

Pressure

8-18 PSI

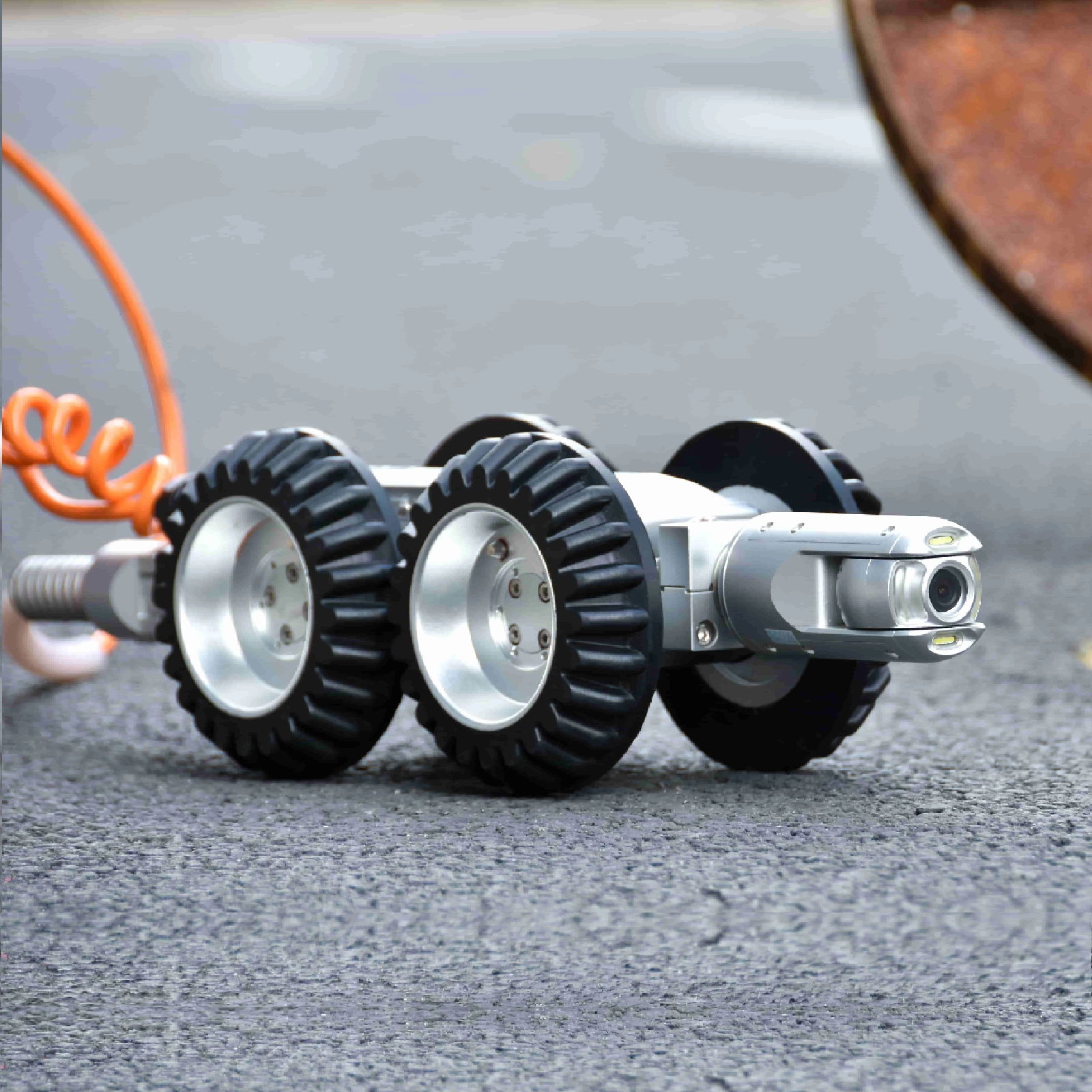

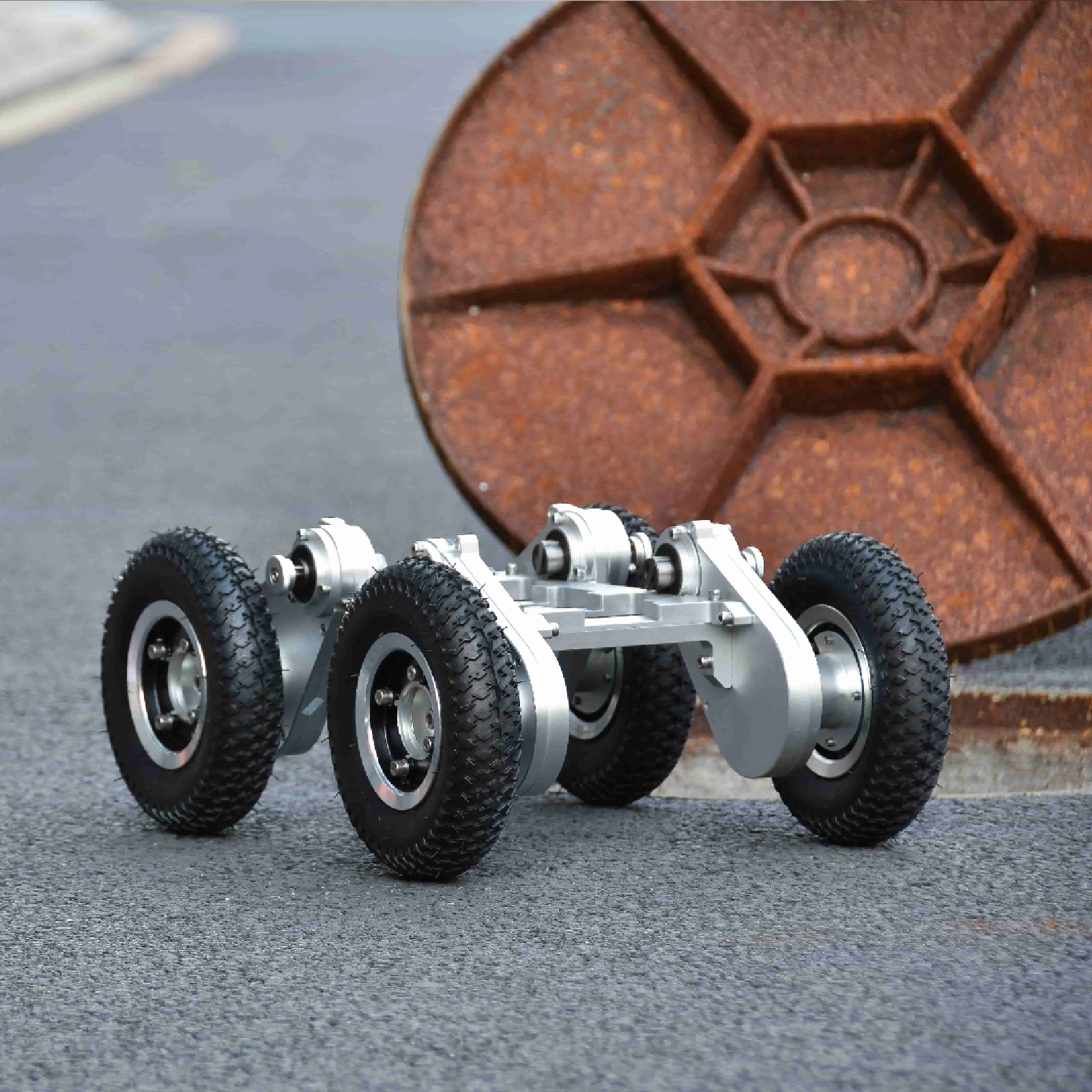

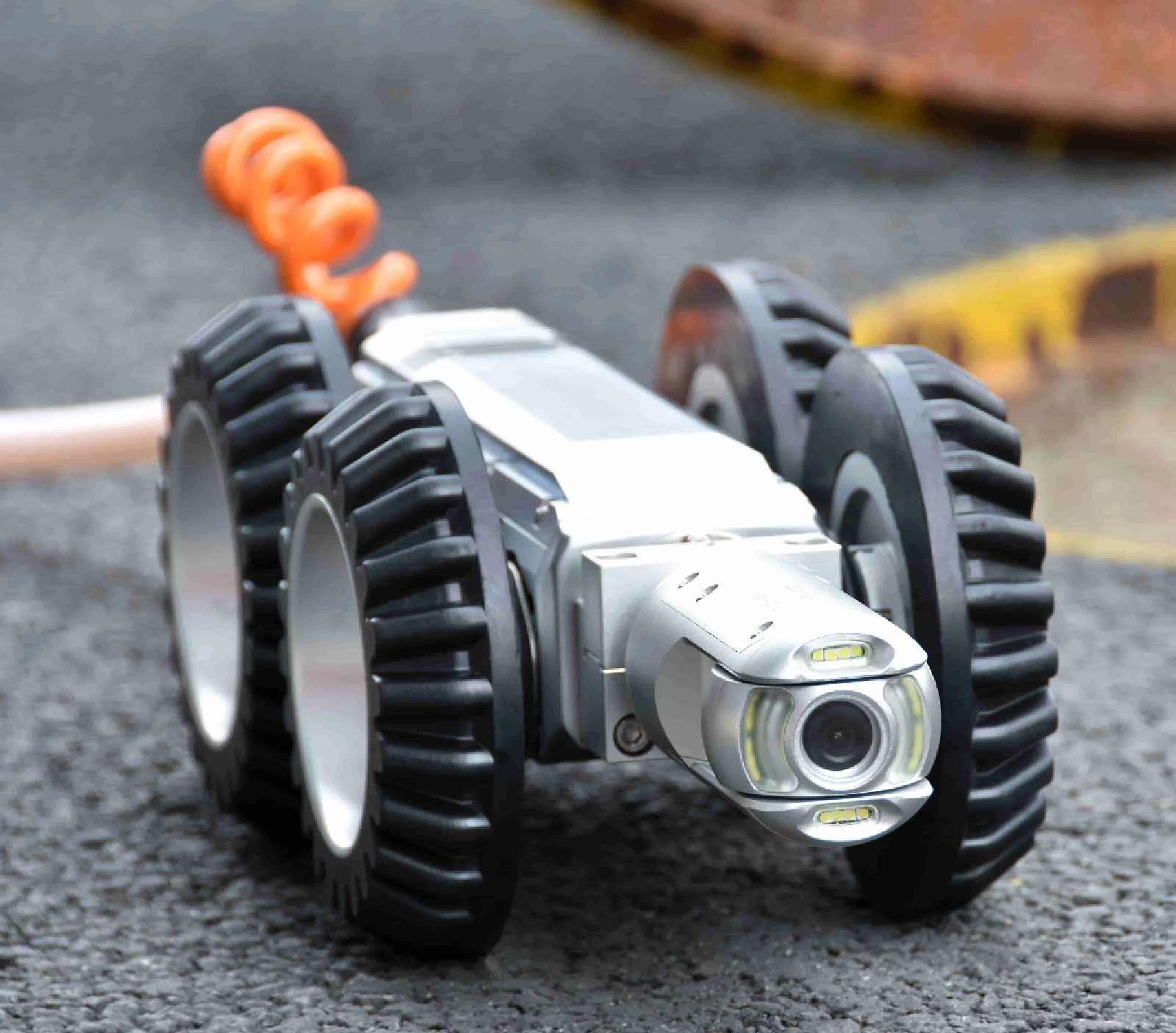

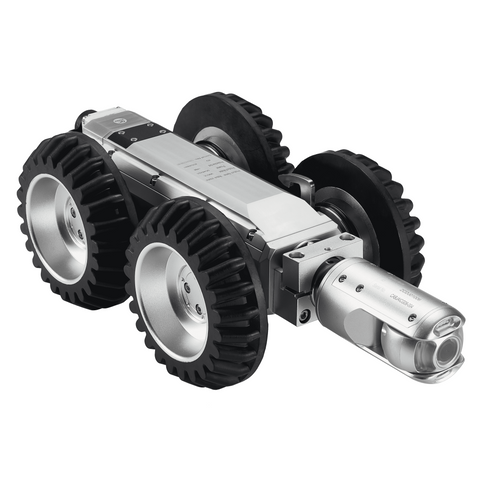

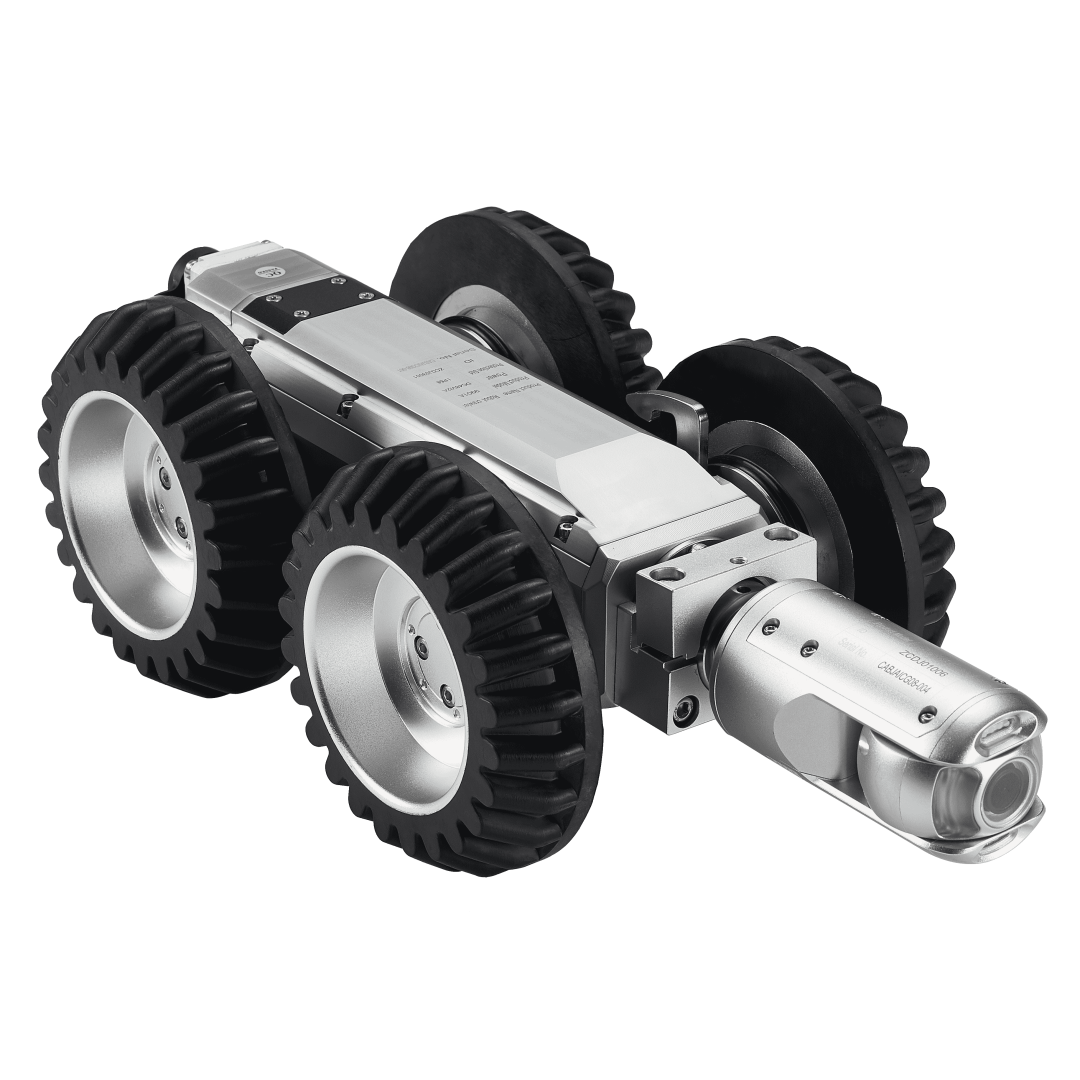

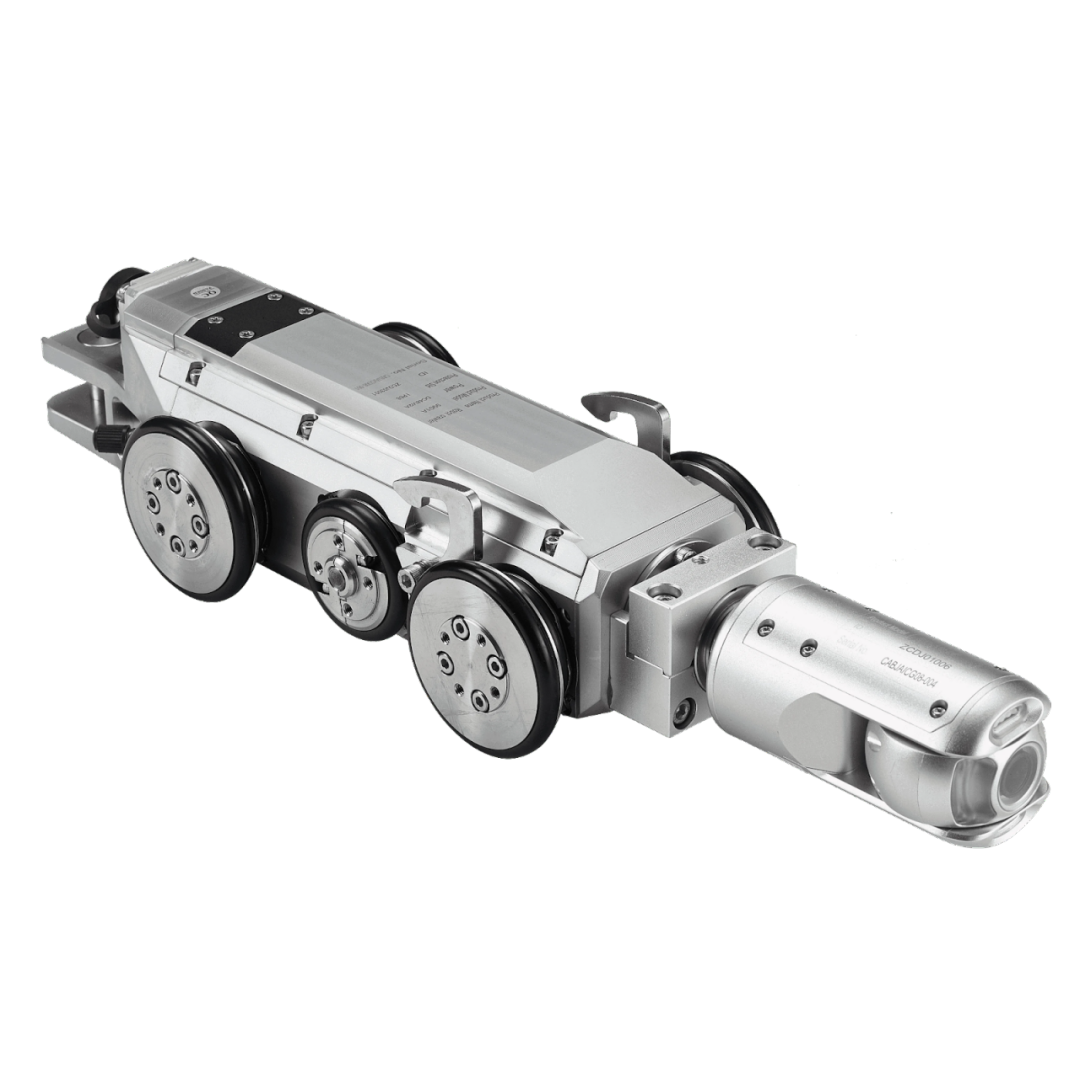

CRAWLER SYSTEM

Use

100-600mm diameter of pipes with 3 types of tires,manual lifting platform optional

Control Unit

Wireless

Power Supply

Battery and/or Adapter

Direction

Moves forward, backwards, turn left or right with anti-overturning design

Injected

PSI 12PSI

Underwater Capability

Yes, up to 10m underwater

Ingress Protection

IP68

Working Temperature

-20°C to 55°C

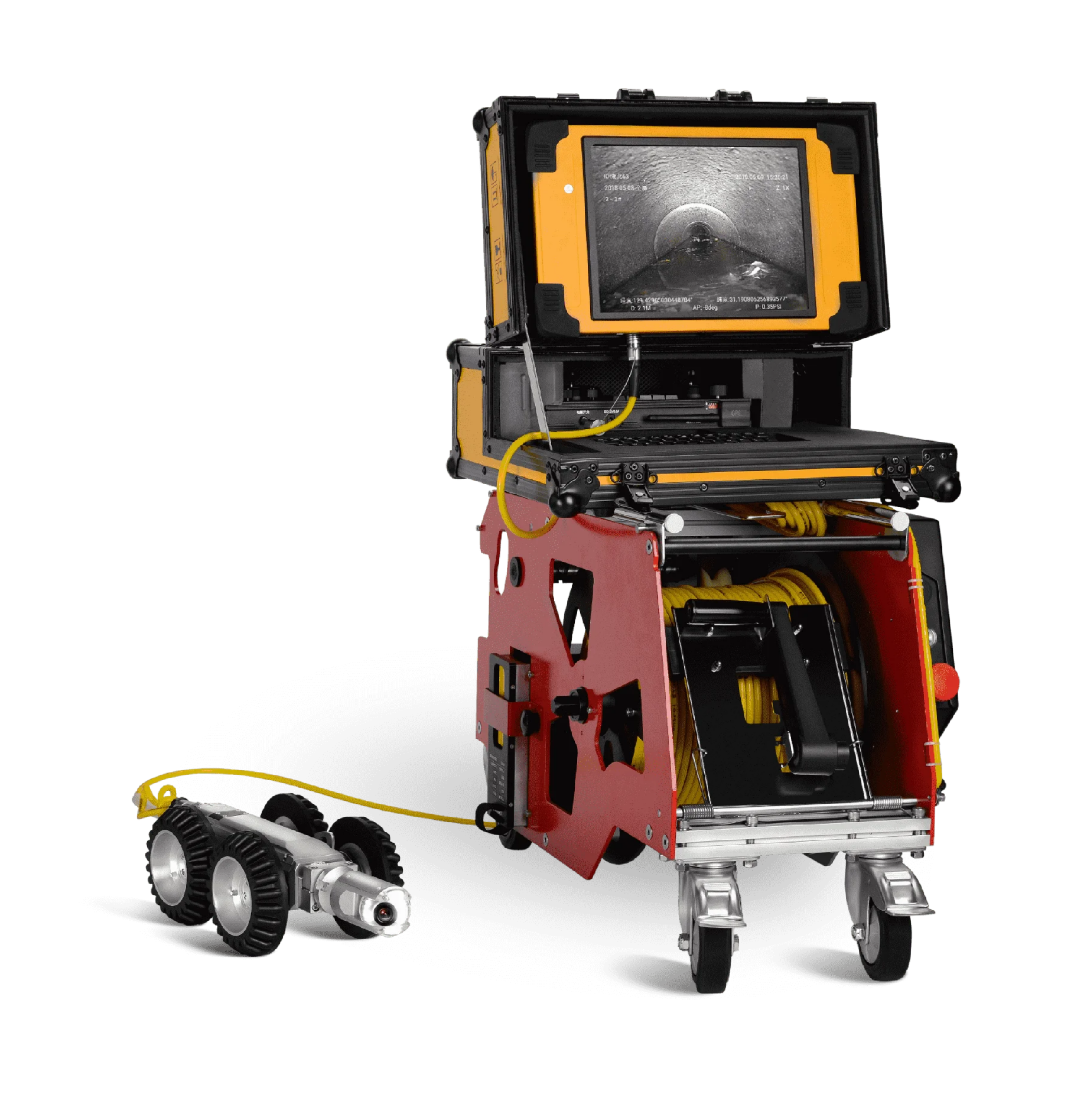

DISPLAY

Screen

Touch Screen Capability

Display Size

12.1" with 256GB

Display

Data Speed, distance, pressure, Inclination sensor, time can be displayed on the screen

Resolution

1024 x 768


Format JPEG

Video Format

AVI/MPEG4

Reports

Can generate a pipe report directly

CONTROLLER

Image Zoom

Push-button encoder control image zoom in and out more precisely

Joystick

Wireless joystick, controls the front camera and motion crawling movement for a user friendly interaction

Working Distance

Up to 10m

MANUAL CABLE DRUM

Counter

Electronic meter counter, distance can be directly displayed on the screen

Cable Length

120m, up to 300m

Motorized Cable Reel

(OPTIONAL) the cable rolls in or out automatically

Dimensions

780 x 410 x 490 (mm)
