Description:

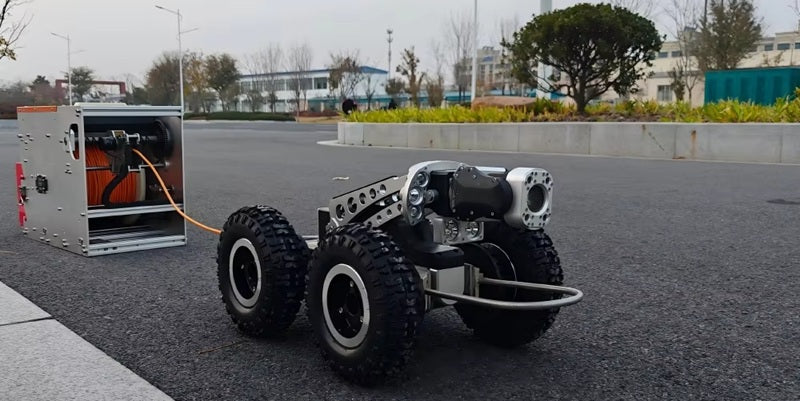

Pipe Crawler Inspection Robot
Equipped with heating defogging function, scratch‑resistant and anti‑condensation
- Pan‑tilt, lifting frame, and wheels support quick disassembly and installation
- Maximum climbing angle 60°, with air pressure display and rollover alarm
- Standard configuration includes 4‑inch, 5‑inch, 6‑inch, and 9‑inch; 9‑inch paddy field wheels(Optional),paddy field wheel lift kit(Optional) meets inspection requirements for multiple scenarios.
Pipeline Inspection Robot Crawler
|
Pipe Diameter |
DN300–DN2000mm |
|||
|
Protection Rating |
IP68 |
|||
|
Camera Rotation |
Left/right 360°, up/down 180° |
|||
|
Pan-Tilt Camera |
2MP, 10× optical zoom, 0.7 LUX |
|||
|
Front Lighting |
4 × stepless dimming high-brightness white LED lights |
|||
|
Front-View Pan-Tilt |
Heating defogging function, scratch-resistant, anti-condensation |
|||
|
Climbing Angle |
60° |
|||
|
Drive |
Single-motor differential design, stepless speed control |
|||
|
Lifting |
Electric lifting, Maximum vertical ground clearance 234mm |
|||
|
Wheels |
Standard 3-inch and 4-inch sets included |
|||
|
Operating Temperature |
–20 °C to 50 °C |
|||
|
Weight |
8kg |
|||
|
Distance |
10 mm -1500 mm (wide-angle to telephoto) |
|||
|
Protection |
Air pressure display and rollover alarm |
|||
|
Dimension |
567 × 135 × 204mm (small wheels, lifting frame raised) |
|||
Cable Reel Cart
|
Protection Rating |
IP65 |
|||
|
Cable |
130m two-core Kevlar-reinforced cable |
|||
|
Length Measurement Function |
High-precision (±0.05m) positioning counter |
|||
|
Power Supply Method |
Imported battery cells, rechargeable lithium battery, continuous operation for 24 hours |
|||
|
Battery specification |
60V/18AH |
|||
|
Winding Method |
Manual |
|||

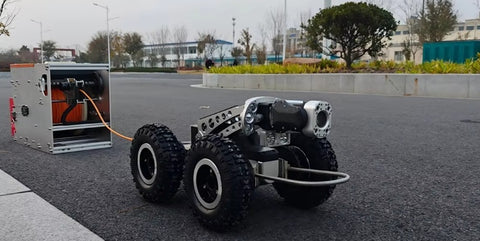

IBEX Lunar-X1 Touchscreen Tablet Sewer Pipe Inspection Robotic Crawler System for Industrial Pipes (Copy)
