MPE DPT-200 Underground Pipe Leak Detector Outdoor Indoor Leakage Detection Device Walls Floors Leak Water Pipe Leak Detector

Multi-sensor Outdoor Pipeline Leak Detection

Multi-Sensor outdoor pipeline leak detection series: a new generation of intelligent leak detection equipment independently developed  specifically for leaking pressure pipes. The instrument can be equipped with triangle sensor, square sensor, medium sensor and large sensor. It is suitable for water leakage detection of outdoor water pipe, fire pipe, heating system, indoor water pipe, and underground heating floor pipe. By collecting and analyzing leakage signal, it solves the problem of pressure pipe water leak.

Outdoor Water Leak Detector L series is the newly updated and multi-functional water leak detector, it is applied to different detecting leakage of outdoor water pipe, fire pipe, heating system, indoor water pipe, and underground heating floor pipe. By collecting and analyzing leakage signal, it solves the problem of pressure pipe water leak.

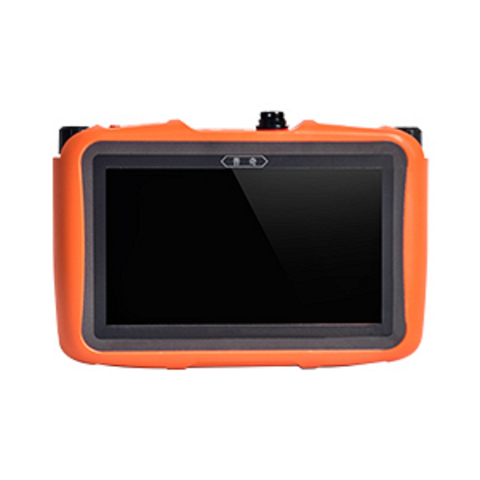

Host machine

7 Inch HD digital touch LCD screen host, which can more intuitively see the change of the sound wave of the pipeline through the bar chart, so as to find the leaking point faster and more accurately

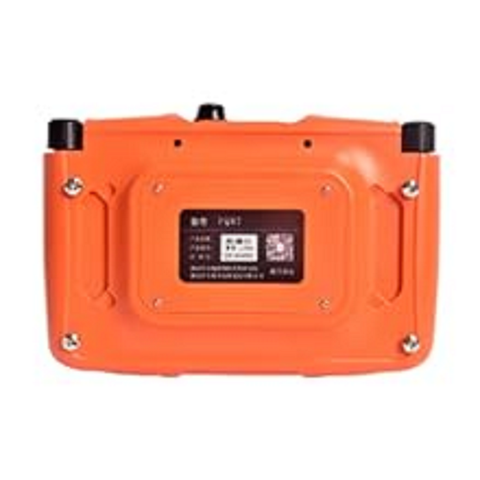

Back of Host machine

Built-in rechargeable battery for up to 15 hours of use

Details
1. Indicator: switch indicator and charge indicator

2. Switch button: for host machine on/off

3. Right knob switch: clockwise volume +, counterclockwise volume -, press to turn on/off sound

4. Left knob switch: clockwise gain +, counterclockwise gain -, press to turn on/off sound

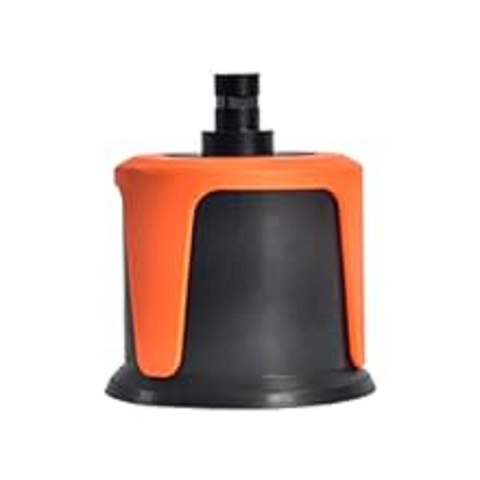

Middle sensor

for normal outdoor environment detector for depth 5m middle sensor is used for the detection of most outdoor pipes and other environments

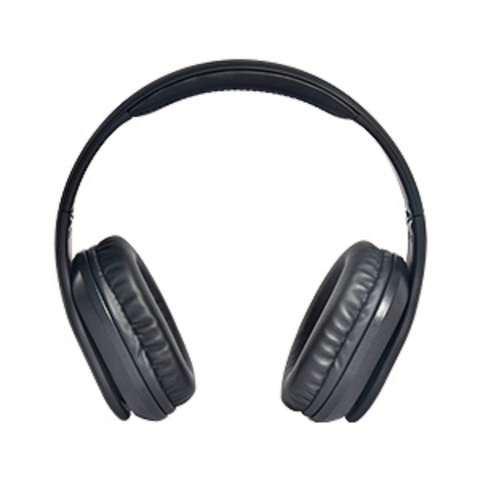

Earphone

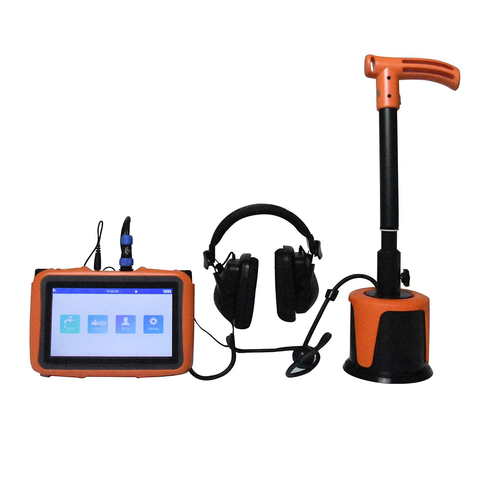

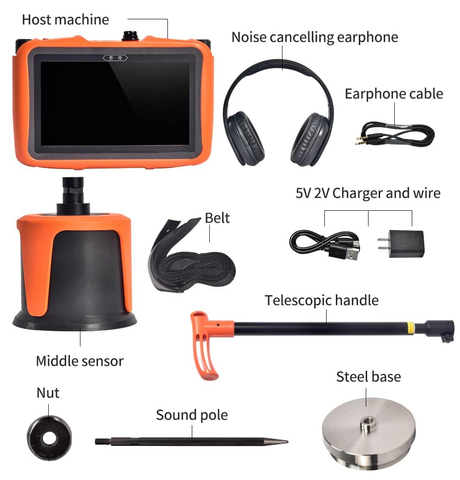

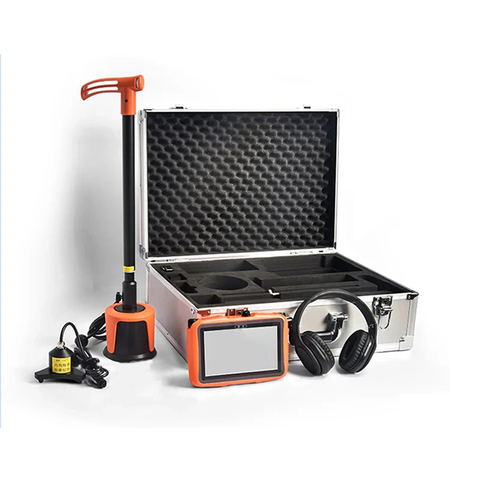

The major components of the instrument include: Host Machine, Noise Reduction headphone, Medium Sensor(for outdoor normal environment), Large Sensor(for outdoor noisy environment), Telescopic Pole (for connecting sensors), Sound pole (for inserting soft soil, lawn).

Specifications:

Model: DPT-200
Measuring area: Indoor + outdoor pipelines
Sensor: Middle-sized sensor and vertical sensor
Frequency range: 1-10000HZ
Gain: 10 adjustable levels
Volume: 10 adjustable levels
Operating mode: General Detection; Locating Mode
Display: 7 Inch HD digital touch LCD screen
Working environment temperature: --20℃~ +50℃
Charging time: 7-8 hours
Standby time: 15 hours
Power: about 2W
Charger: 5V 2A USB
Item Weight: ‎17.16 pounds
Product Dimensions: ‎18.11 x 7.48 x 16.14 inches
Weight (Host Machine): 0.7Kg
Size of main unit: 214 x 146 x 48mm/8.4 x 5.7 x 1.9" (LxWxH)

Function:

1. Can filter with the interference of environmental noise, screening out the leakage noise, lock leakage points quickly

2. Full touch screen design, simple operation.

3. Can be displayed the distribution of the noise signal at each frequency in real time

4. Automatic drawing continuous noise curve (Locating Mode) within a certain time

5. Sensor is built-in preamp circuit, making the ability to capture the noise is higher than similar products

6. Adopt latest noise detecting element, sounds clear

7. The number and time of recordings is unlimited, which is not lost after shut down, could be analyzed at any time

8. Using a large capacity battery, can work for more than ten hours, and can be removed charging and online charging

Operation

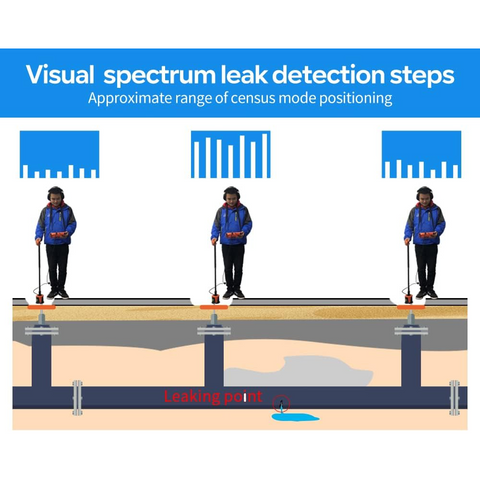

General Detection: Pay attention to the sound volume in the headset and observe the spectrum change on the screen. When the spectrum on the instrument’ screen is high and the sound in the headset is significantly increased, the area can be identified as a suspected leakage area and marked

Locating: After determining the suspected water leakage area, we use the locating mode to determine the location of the water leakage,The detecting mode can collect 16 points, and we can compare the spectrum bar of each point directly,When the detected point has the highest thick spectrum bar, and the signal value is the biggest, it can be judged as suspected leaking point.

Frequency adjustment: The corresponding frequency can be adjusted according to different measurement environments. When measuring indoors, the frequency can be adjusted 200hz, -2000hz. When measuring outdoors, the frequency adjust to 200-2500HZ. When the external noise large, the frequency can adjust to 600-1200hz
