Description:

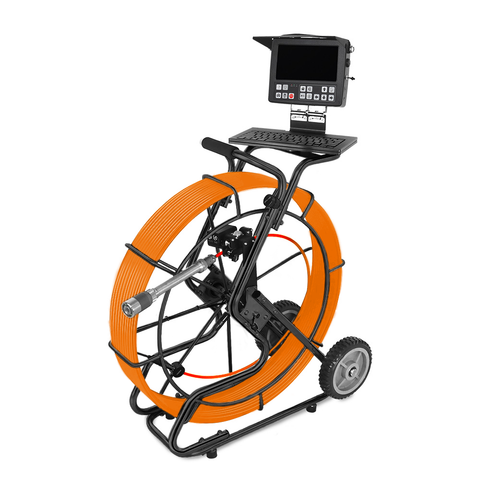

MPE  V-snake MAX Series is a portable industrial high-definition pipeline detector. It adopts industrial-grade high-resolution color camera system and is equipped with glass fiber toughness push rod cable. It can realize real-time image detection of various pipelines, sewers, hidden spaces and other places through photo, video and audio storage.

Equipment Overview

1. 40mm dynamic balance HD camera ;

2.8 - inch high-definition display;

3. AHD DVR waterproof control box, capable of taking photos, recording videos, recording audio and storing data;

4. Portable cable winding rack and digital meter function;

5. The diameter of the glass fiber cable is 9mm and the length can be customized ;

Equipment parameters

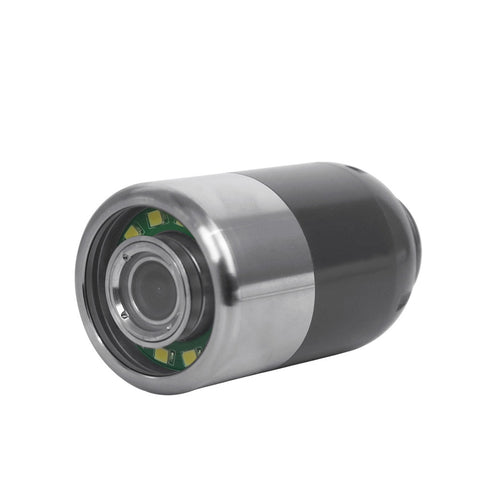

Camera size: Φ40 mm x 60 mm

Camera with automatic balance function
Sensor: 1/3 inch CMOS 1.3MP pixel
Sapphire lens, stainless steel housing
Waterproof level: IP68


Camera wide angle range: 120°
8 high brightness LEDs, adjustable light

Can be built-in 512 transmission signal, can be used with receiver to receive signal

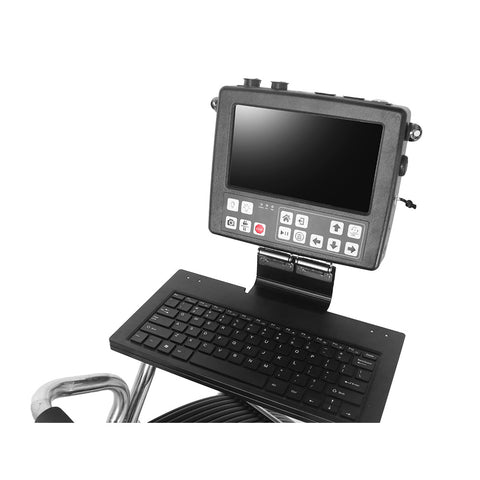

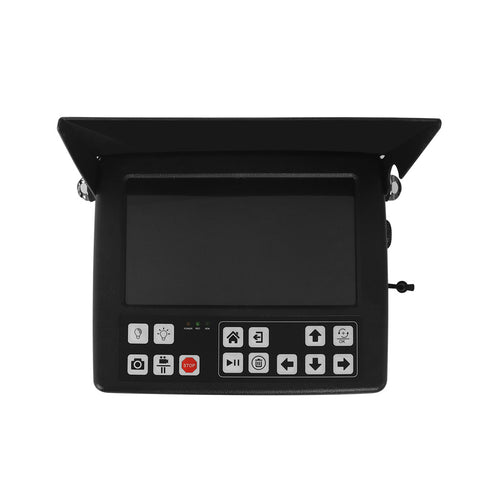

8-inch IPS LCD high-definition display

HD DVR system, 720P AVI video interface

External USB storage (16G)

USB Wireless Keyboard

Built-in 7000mA lithium-ion battery, supports 5 hours of continuous work

The control box is waterproof and cannot be immersed in water.

Fiberglass actuator cables

Cable diameter Φ9.0 mm
Cable standard length 60 meters

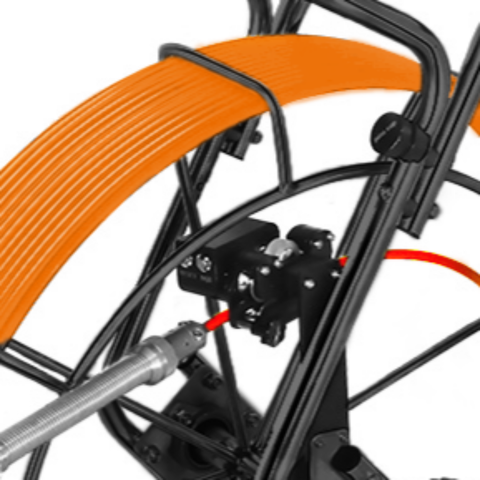

Stainless steel portable cable rack with meter function, error less than 1%

Equipment Application

The equipment is widely used in domestic and foreign municipal pipelines, factories and enterprises, petrochemical industry, aviation and automobile inspection, railway locomotive inspection, building inspection, water conservancy and hydropower, survey institutes and field investigation, disaster search and rescue and other dark environments, and can easily check internal cracks, corrosion, welds, blockages and other abnormal conditions.
