Portable Motorized Winch Waterproof Water Well Inspection Camera With 360 Degree View Pan Tilt Rotate Camera

100M 200M Water Well Camera 360 degree Pan Tilt Rotation Camera Head with Portable Electric winch (Waterproof 10bars)

AC Power or DC24V power / Depth Counter Function / Big 13 inch HD Display

Special Features:  Waterproof / Weatherproof, PAN-TILT

Sensor:  CMOS

Style:  ptz camera

Function:  PAN-TILT, built-in mic, Waterproof / Weatherproof, Wide Angle, Depth counter

Lens:  5-50mm

Video:  Compression Format H.264

Data Storage:  Options dvr, SD Card

Customized support:  Online technical support, Customized logo, OEM, ODM

Technology:  Pan / Tilt / Zoom

Monitor:  13 inch HD display

camera head:  diameter 50mm Pan tilt camera

camera lens:  sapphire glass

Lighting:  6pcs high intensity white LED

Cable:  100m to 200m

Battery:  12V 8800mA rechargeable li-ion battery

Keyboard:  wireless keyboard

,

Product Description

1. Dia.50mm Pan Tilt  rotation camera head

2. Pan 360° rotation, Tilt 180 degree rotation ,Waterproof 10bars

3. 1/3 CMOS,1.3MP pixel HD camera sensor

4. 13" HD screen with big sunshade

5. DVR control box with audio, video recording and photography function

6. 100m to 200m Dia.8mm flexible cable with electric winch

7. USB wireless keyboard to typewrite the words

8. Camera video resolution is 720P

9. Built in 8800mA li-ion battery, support control box working

10. AC110V to 230V or DC24 for electric winch working

11. Digital meter counter function, error is less than 1%

11. Manual Focus for side camera.

Waterproof DVR Control Unit

*13" HD IPS LCD Screen,

   1280X720 resolution

* PT camera Joysticks for rotation and focus functions

* HD DVR SYSTEM with recording 720P video, auido and photography function

* USB bluetooth Keyboard for real time typewriting

* Video input jack, available for connecting big and small camera heads

* Digital meter counter function, displayed on the screen

* 8800mA rechargeable Li-ion Battery Pack

* Battery level indicator

50mm Pan Tilt Rotation Camera With Manual Focus function

* Camera size Ø50mm x 154mm, sensor 1/3" CMOS, 1.3MP pixel

* Waterproof IP68 ,waterproof pressure 10 bars

* View angle 120°

* Rotation: Pan 360°, Tilt 180°

* Manual focus function( Far focus and New focus)

* 6pcs high light LED lighting adjustable

* Detachable with pins type connection to Cable Reel

* Lens window sapphire glass

 * Camera head Housing: Aluminum/Stainless steel

Cable Reel

* Flexible Cable diameter ø8mm

*  100m to 200m  length optional                                                                                                     *  On-screen meter counter

*  Reel brake and slot for camera

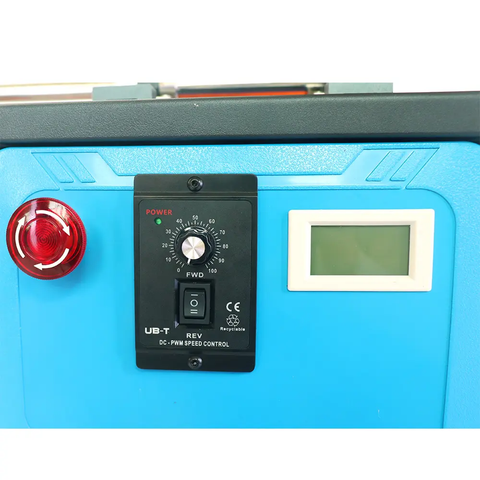

*  Electric winch with speed adjustable

* AC110V to 230V or DC24V voltage for winch working

Other Spare parts

Packaging and delivery

Selling units Single item

Single package size 59X35X69 cm

Single gross weight 40.000 kg
